creabest lifepo4 batterie 175a
creabest lifepo4 12v
lifepo4 12v
lifepo4 175ah
lifepo4 akku mitmonitor
lifepo4 battery 12V
CREABEST VB046-175AH size
  • SKU: VB046

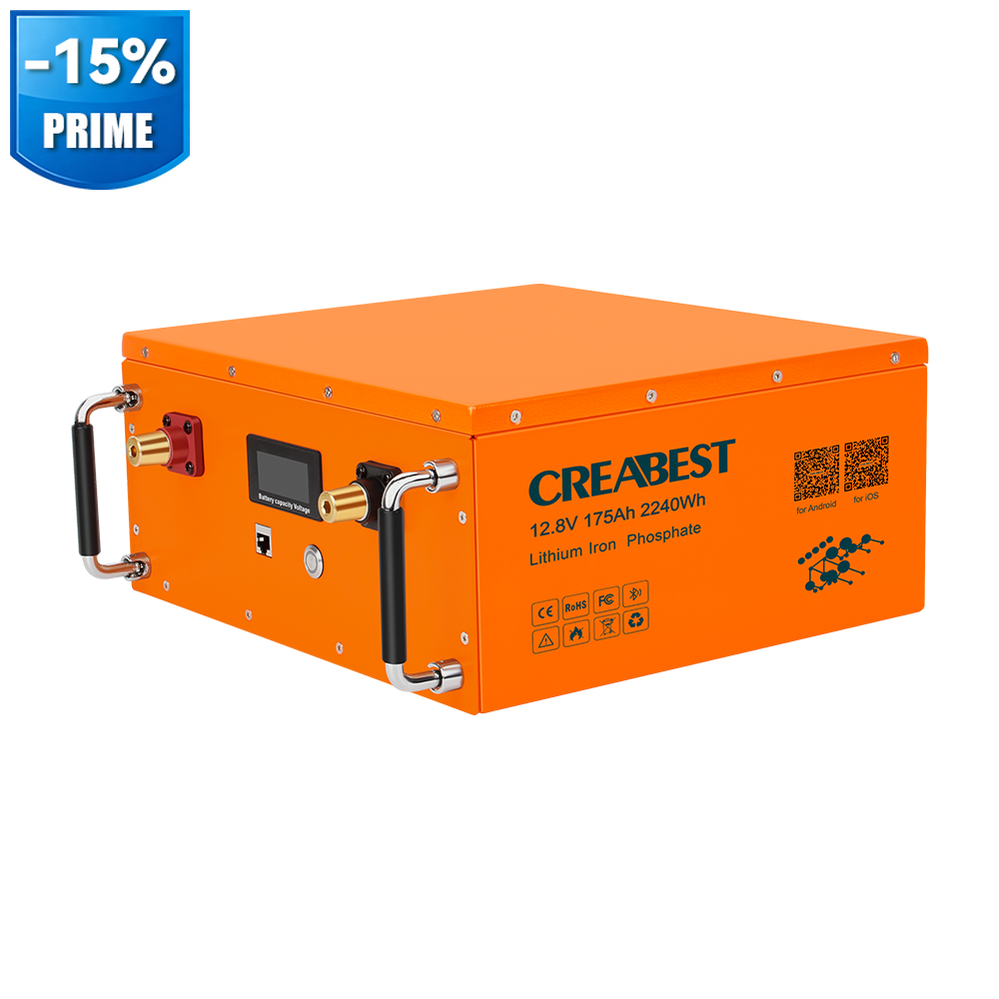

CREABEST LiFePO4 Battery 12V 175Ah for Campervan Solar Caravan Leisure Marine Boat with Bluetooth

£449.99
  • ECE R10 Approved.
  • Can be placed perfectly under the seat.
  • 100% actual capacity: 175A.
  • Continuous discharge current: 200A.
  • Maximum charging current: 175A.
  • With Bluetooth.
  • With switch button.
  • With battery monitor
    •
    Shipping Ask about this product
      creabest lifepo4 175a
      Product Specifications-VB046-175Ah
      Voltage 12.8V Chemical material LiFePO4
      Capacity 175Ah Discharge temperature -20°C -60°C
      Total watt 2240Wh Charging temperature 0°C -55°C
      Standard discharge current 88A Terminal type M8
      BMS protection current 300A(10s) peak discharge current 350A(5s)
      Standard charging current 88A Recommended charging voltage 14.4V-14.6V
      BMS low voltage protection 10.6V Net Weight 21.5KG
      Series/parallel 4S2P Dimensions in mm (LxWxH) 342*341*152mm
      lifepo4 batteri 175a
      Large capacity cells3.2V 88Ah X8 in series/parallel:

      Effective discharge capacity ≥172A.

      •Little internal resistance and good security.

      •Lower error rate.

      •Higher effective discharge capacity.

      •More suitable for high current discharge.


      creabest 175a monitor

      Switch button: Press for 3 seconds to turn off the battery.

      【Wide Applications】

      Small,  medium and large-sized campervan/caravan. It is recommended that the total power of the device does not exceed 3000W.

      Solar, off-grid, boats, camping, caravan Leisure, marine, etc.

      Battery size: 342*341*152mm. Can be placed perfectly horizontally under the seat.
      Of course it can be placed at any angle.

      creabest lifepo4 175a applications
      CREABEST APP

      How to use APP?

      creabest QR
      • Please scan the following QR code via your smartphone browser or search "CREABEST" in Google Play (Android)/App Store (iOS) to download it.
      • When the installation ompleted, click to enter the APP. Note: The Bluetooth of the mobile phone is always on and permission to access the location is allowed.
      • Optional: Click Login/Register, enter the registered email address and password.
      • Select the appropriate battery model, and then click the battery model to open the data display interface.
      lifepo4 bms

      Important of the BMS (Battery Management System)

      • Overvoltage Protection
        BMS will turn off the charging interface when the battery voltage is too high.
        When the battery voltage returns to a certain value, the charging interface will be opened again.(the voltage of a single cell should not exceed 3.65V)
      • Deep Discharge Protection
        Each cell of the battery is monitored individually. When the battery voltage drops to a certain value, the BMS will shut down the battery. It can only be activated when the battery is charged.
      • Active Balancer
        The built-in active balancer regulates the voltage of the internal cells, to ensure that the internal cells have the same voltage.
        This can extend battery life.
      • Charging Current Protection
        When the charging current is too high, the BMS will shut down the battery.
        Usually our battery charging current will not exceed 1C. The standard charging current of the battery is 0.5C.
      • Battery Temperature Protection
        When the battery temperature is too low/high (-20°C -60°C), the BMS will shut down the battery.
        Only when the temperature of the battery returns to normal, BMS will automatically turn on the battery.
      • Low Voltage Protection/Overload Protection
        When the battery voltage is too low (the voltage of a single cell is lower than 2.65V), BMS will shut down the battery to prevent the battery voltage from being too low and unable to recover.



      lifepo4 advantages
      lifepo4 VS AGM

      Advantages of the LiFePO4 battery

      • High Security Performance
        One important advantage over other lithium-ion chemistries is thermal and chemical stability, which improves battery safety. LiFePO4 is an intrinsically safer cathode material.
      • No Memory Effect
        Rechargeable batteries often operate on a full charge and quickly fall below capacity the nominal capacity. This phenomenon is known as memory effect known. Lithim iron phosphate batteries do not have memory effect. For users, this has the great advantage that the battery can be charged at any time - regardless of its charge level.
      • Larger Capacity
        Has larger capacity than ordinary batteries(lead acid etc). Single cell capacity can reach 5-1000AH 3.2V. Excellent for high current discharge.
      • Lighter Weight
        A lithium iron phosphate battery of the same capacity is 2/3 the volume and 1/3 the weight of a lead-acid battery.
      • Environmentally Friendly
        Lithium iron phosphate batteries generally apply as free of heavy metals and rare metals (Nickel-Metal Hydride batteries require rare metals), are non-toxic (SGS certified), environmentally friendly. Comply with European RoHS regulations and are definitely certified as green batteries.
      • Longer Cycle Life
        Under most conditions it supports more than 3,000 cycles. While the cycle life of lead-acid Batteries is only about 200-300 cycles, the lifespan is about 1 to 2 years. LiFePO4 batteries, have a theoretical tical lifespan of 6 to 8 years when used under the same conditions.



      【Quality inspection】

      This battery has been tested under various conditions and the test results are excellent.
      LiFePo4 battery did not cause burns or explosion when fingernail test punctured!
      Even in the low temperature (0°C) and high temperature test (>55°C), neither the current nor the voltage were hardly affected.
      Equipped with a first-class battery management system, the short-circuit test, discharge test and load test were completed without any problems.


      【Guaranty】

      Warranty: 2-year warranty, with lifetime technical support for the life of the battery.


      【Package】

      1*VB046-175Ah battery.
      1*installation tool.
      1*Manual.
      2*M8 Terminals.
