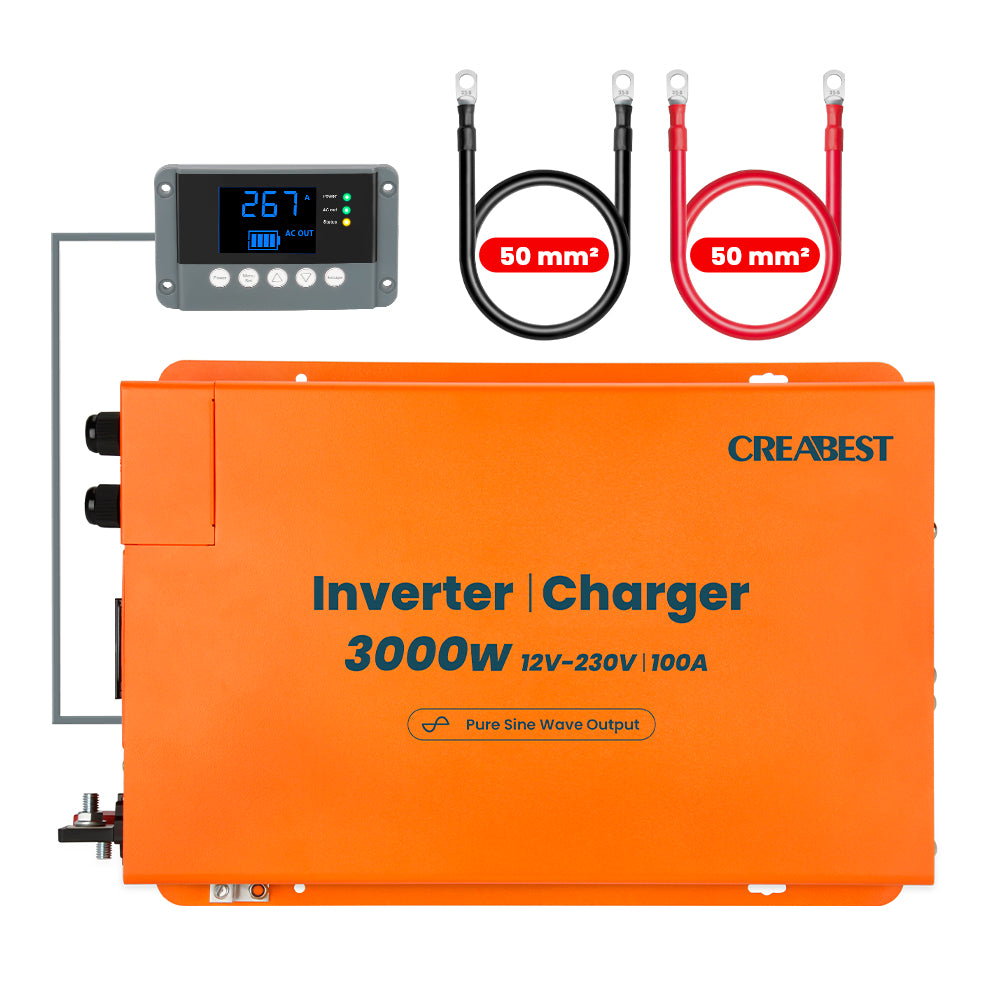

3000W Pure Sine Wave Power Inverter 12V to 240V with RCD Breaker, Charger 100A, Mains Priority Mode, UPS Function, 2X DC Cable 50mm²

PDF Manual-Inverter with Charger & RCD

【3000W Pure Sine Inverter with 100A Charger Integrated】

3000w pure sine wave inverter with 100A charger. Allows the conversion of a voltage of 12V DC (direct voltage) to a voltage of 220V-240V AC (alternating voltage).
Present a quality inverter with compact dimensions and low weight, which can easily produce any effect.
This allows you to easily power electrical consumers such as coffee machines, DIY equipment, pumps, motors, refrigerators, compressors, air conditioners, hair dryers, televisions or laptops when traveling.

【Residual Current Circuit Breaker / RCD Breaker】

Inverters with residual current circuit breakers are safer: If someone is electrocuted or the leakage current of the power grid exceeds the specified value, the residual current circuit breaker can cut off the power supply in a very short time to protect the safety of people and electrical appliances, and it has the function of overload protection and short-circuit protection.

RCD parameters:
Rated current: 16A
Rated residual current: 30mA
Breaking time: t＜0.1s

【Integrated Charger: Max. Charging Current 100A】

The charging current can be set via the Wired Remote Control Panel.
Please note: Default charging current = 60 A. You can adjust the charging current according to the Wired Remote Control Panel.

【Max. Continuous Output Power：3000 W】

Thanks to the powerful heat dissipation ability of the fan and the reliable hardware equipment.
The inverter can work continuously with a load of 3000 W.

【 Remote Control: view data/set parameters】

The Wired Remote Control Panel is connected to the remote port of the inverter and you can view data and set parameters. For example: set battery type, charging voltage, charging current, etc. (cable length: 7000 mm)
For detailed information on operation, please refer to the user manual or contact us.

【 Smart Cooling Fan, Pleasantly Quiet】

Adjust the fan speed according to the temperature.
Very suitable for night-time charging in motorhomes. (Recommended charging current: 20 A - 60 A).

【Mains Priority Mode and UPS Function】

Integrated mains priority circuit:
This 12V/240V inverter features Mains Priority Mode - automatically prioritising grid power supply when available, while intelligently maintaining battery backup for seamless transition during power outages.

Uninterruptable Power Supply (UPS):
The built-in AC transfer switch performs the function of an Uninterruptable Power Supply (UPS). In the event of a grid failure, the inverter is automatically activated and takes over AC supply to the connected loads. This happens in less then 20 milliseconds and ensures that sensitive connected equipment continues to run without disruption. This feature can be deactivated if not required.

【 Accessories】

Accessories include: inverter cable, remote control LED display.
All cables are designed to the highest standards: Inverter cable: 50 mm², 70 cm, continuous current 250 A, power ≥ 3200 watts.

【Package List:】

• 1x 3000W Pure Sine Wave Power Inverter
• 2x DC Cables 0.7 meter
• 1x Wired Remote Control Panel 7.0 meter
• 1x User Manual
